Arthur + LangChain

How does a developer instrument a LangChain application with Arthur in under 10 minutes? You install the Arthur Observability SDK with the LangChain extra, initialize the Arthur client with your credentials and task ID, call instrument_langchain(), and every LLM call your LangChain application makes is automatically traced and sent to Arthur for observability and evaluation — no changes to your LangChain code required.

Overview

LangChain is a popular framework for building applications with LLMs through composable chains, agents, and tools. Arthur's LangChain integration uses OpenInference auto-instrumentation to capture every chain invocation, agent step, tool call, retriever query, and LLM request. Once instrumented, you get full visibility into:

• Prompts and completions — every message sent and received
• Chain and agent structure — the full tree of components and their inputs/outputs
• Model parameters — model name, temperature, token counts
• Latency and errors — per-call timing and failure tracking
• Session and user context — group traces by conversation or end-user

sequenceDiagram
    participant App as Your Application
    participant SDK as Arthur SDK
    participant LC as LangChain
    participant Engine as Arthur GenAI Engine

    App->>SDK: arthur.instrument_langchain()
    Note over SDK: Auto-instrumentation enabled
    App->>LC: llm.invoke(...) / chain.invoke(...)
    LC-->>App: Response
    SDK->>Engine: Trace (spans, attributes)
    Note over Engine: Traces visible in dashboard

Prerequisites:

• Python 3.10+
• An Arthur GenAI Engine instance (cloud or local)
• An Arthur API key — see API Keys to create one

Installation

Install the Arthur Observability SDK with the langchain extra:

pip install "arthur-observability-sdk[langchain]"

This pulls in the OpenInference LangChain instrumentor and all required OpenTelemetry dependencies.

Initialize Arthur

Create an Arthur instance with your API key, the base URL of your Arthur GenAI Engine, and the task ID that traces should be associated with.

from arthur_observability_sdk import Arthur

arthur = Arthur(
    api_key="your-api-key",        # or set ARTHUR_API_KEY env var
    base_url="https://your-arthur-engine-instance",  # or set ARTHUR_BASE_URL env var
    task_id="<your-task-uuid>",    # Arthur task UUID
    service_name="my-langchain-app",
)

📘

At least one of task_id or service_name must be provided. A new task with the service_name will be created if task_id is not specified.

⚠️

Use environment variables for secrets. Set ARTHUR_API_KEY and ARTHUR_BASE_URL as environment variables (e.g., in a .env file) rather than hardcoding them in your application.

Instrument LangChain

With the Arthur instance created, use arthur.instrument_langchain() to instrument all LangChain components — LLMs, chat models, chains, and agents.

Under the hood, the SDK:

1. Loads the OpenInference LangChain instrumentor.
2. Passes the SDK's TracerProvider so all spans are exported to your Arthur Engine instance via OTLP.
3. Automatically captures inputs, outputs, token counts, model parameters, and latency for every LangChain operation.

Now use LangChain exactly as you normally would:

from langchain_openai import ChatOpenAI
from langchain_core.messages import HumanMessage
from arthur_observability_sdk import Arthur

arthur = Arthur(
    api_key="your-api-key",        # or set ARTHUR_API_KEY env var
    base_url="https://your-arthur-engine-instance",  # or set ARTHUR_BASE_URL env var
    task_id="<your-task-uuid>",    # Arthur task UUID
    service_name="my-langchain-app",
)
arthur.instrument_langchain()

llm = ChatOpenAI(model="gpt-5-mini")

response = llm.invoke([HumanMessage(content="What is observability?")])
print(response.content)

# Flushes any pending trace spans to the Arthur Engine before the process exits
arthur.shutdown()

Key points:

• instrument_langchain() patches LangChain globally — you do not need to wrap individual chains or agents.
• Every chain, agent, tool, retriever, and LLM call is automatically traced with the full parent-child span hierarchy.
• Call arthur.shutdown() when your application exits to flush any remaining traces.

Add Session and User Context

To group traces by conversation session or end user, wrap your LangChain calls with arthur.attributes(). This attaches session_id and user_id as OpenInference context attributes to every span created within the block.

with arthur.attributes(session_id="sess-1", user_id="user-42"):
    response = llm.invoke([HumanMessage(content="Hello!")])

This is especially useful for:

• Multi-turn conversations — trace an entire chat session end-to-end
• Per-user analytics — understand how individual users interact with your application
• Debugging — filter traces in the Arthur dashboard by session or user

You can nest or change context across different blocks:

# First user's session
with arthur.attributes(session_id="sess-1", user_id="user-42"):
    response = llm.invoke([HumanMessage(content="Hello!")])

# Second user's session
with arthur.attributes(session_id="sess-2", user_id="user-99"):
    response = llm.invoke([HumanMessage(content="What's the weather?")])

Verify in Arthur

After running your instrumented application, traces appear in the Arthur GenAI Engine within seconds.

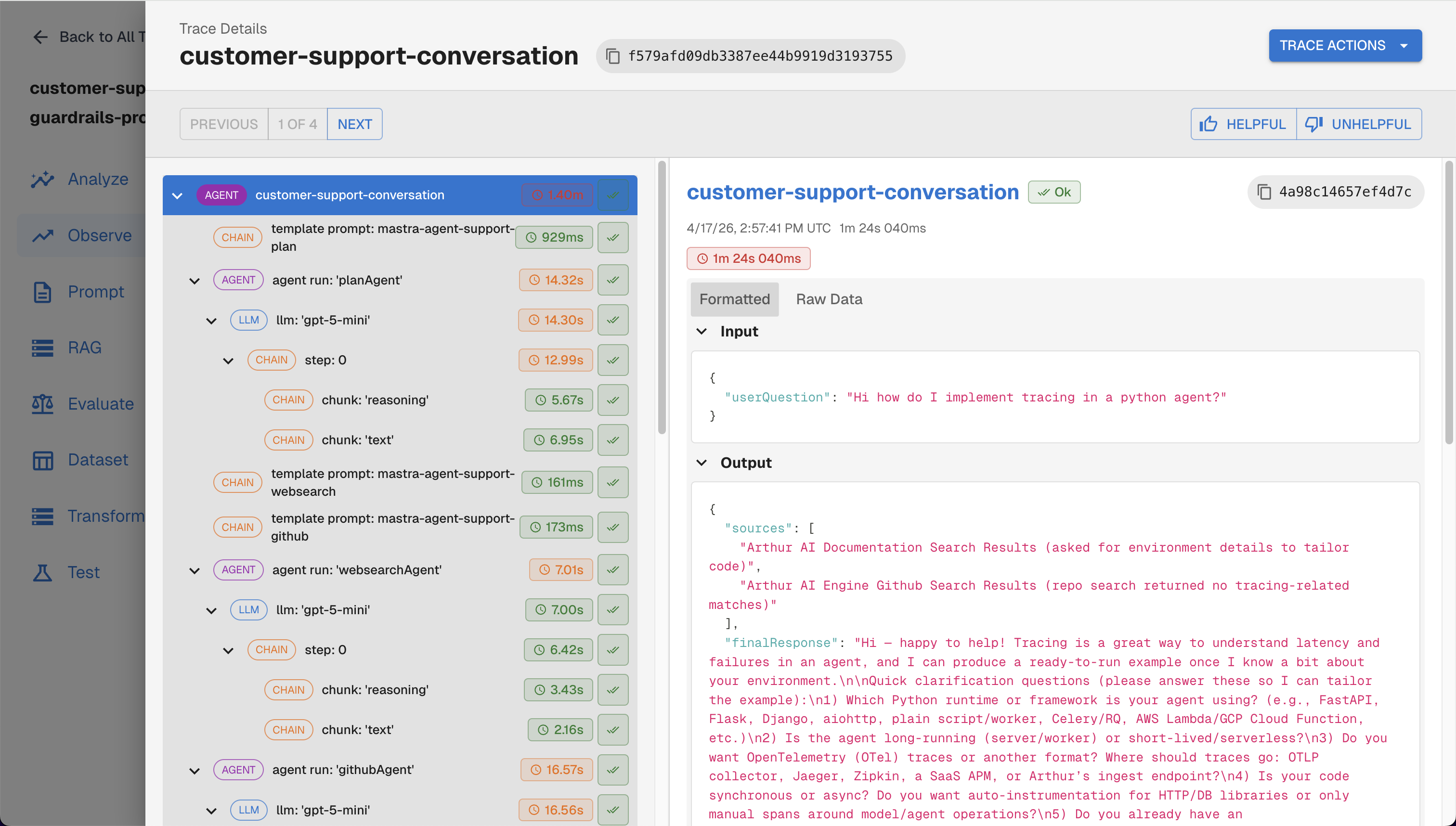

What to look for in the dashboard:

• Trace list — each invoke() call appears as a trace with the full chain/agent span tree
• Session grouping — if you used arthur.attributes(session_id=...), traces are grouped by session
• User filtering — filter by user_id to see a specific user's interactions
• Token usage — prompt and completion token counts are captured automatically

You can also query traces programmatically:

curl -X GET "${ARTHUR_BASE_URL}/api/v1/traces?task_ids=${ARTHUR_TASK_ID}" \
  -H "Authorization: Bearer ${ARTHUR_API_KEY}"

Troubleshooting

Next Steps

Now that your LangChain application is instrumented and sending traces to Arthur, explore these capabilities:

• Prompt Management — use arthur.get_prompt() to fetch versioned prompts from Arthur Engine and track which prompt version produced each trace
• Continuous Evaluations — set up automated quality evaluations that run against your incoming traces
• Agentic Experiments — if you're building LangChain agents, run structured experiments to evaluate agent behavior across test cases
• Read our Best Practices for Building Agents Blog Series — observability and tracing fundamentals for building production agents
• Other Integrations — Arthur supports OpenAI, Anthropic, Bedrock, and other frameworks using the same Arthur client pattern

flowchart LR
    A[Instrument LangChain] --> B[View Traces]
    B --> C[Add Evaluations]
    B --> D[Manage Prompts]
    C --> E[Set Up Continuous Evals]
    D --> F[A/B Test Prompts]
    E --> G[Production Monitoring]
    F --> G
